3*8圆柱晶振参数：
|
ITEMS/TYPE |
Y38 |
|
Nominal Frequency |
32.768KHz |
|
Load Capacitance |
7pF,9pF,12.5pF, or specify |
|
Frequency Tolerance (at 25℃) |
±20ppm, or specify |
|
Operating Temperature Range |
-70~+70℃, or specify |
|
Parabolic Coefficient (B) |
(-0.03±0.01) 10-6 * / ℃2 |
|
Shunt Capacitance (C0) |
2.0pF typical |
|
Drive Level |
1.0μW Max. |
|
Aging (at 25℃) |
±3ppm/year Max. |
|
Storage Temperature Range |
-55~+125℃ |

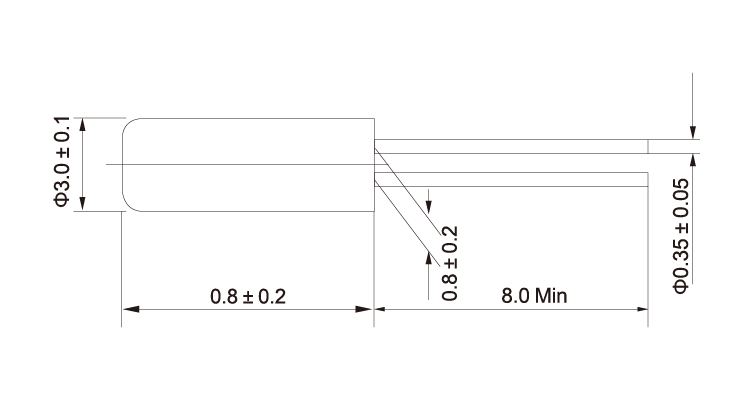

3*8圆柱晶振尺寸：
