晶振参数：
|
ITEMS/TYPE |
AST |
|
Frequency Range |
12~54MHz |
|
Vibration Mode |
Fundamental |
|
Load Capacitance |
8pF, 10pF, 12pF, or specify |
|
Frequency Tolerance (at 25℃) |
±20ppm, or specify |
|
Frequency Stability Over Operating Temperature Range |
±150ppm Max. |
|
Operating Temperature Range |
-40~+125℃, or specify |
|
Drive Level |
1~200μW Max. (100μW typical) |
|
Storage Temperature Range |
-40~+125℃ |
|
Reliability Standard |
AEC-Q200 |

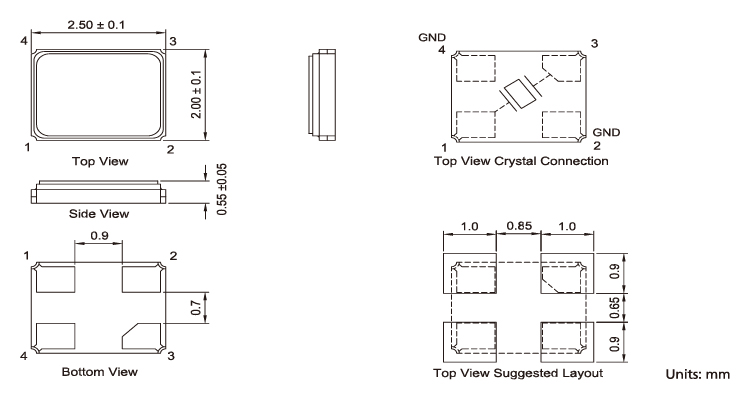

晶振尺寸：
*精度高，频率稳定。
*优良的耐热性和环境特性。
*在PDA、DSC、DVC和PC应用。
*符合RoHS/无铅
| 图片 | 类型 | 型号 | 封装尺寸 | 频率 | 电压/负载 | 频差 | 工作温度 | 样品申请 | |
|---|---|---|---|---|---|---|---|---|---|
 |
AS2 车规级无源晶振 2016 | AS2 | 2.0x1.6x0.5mm | 16-60MHZ | 20PF or specif | ±20PPM or specif | -40℃~+125℃ or specif |  |
浏览 |
 |
AS3 车规级无源晶振 3225 | AS3 | 3.2x2.5x0.7mm | 8-54MHZ | 20PF or specif | ±20PPM or specif | -40℃~+125℃ or specif | |
浏览 |
 |
AS5 车规级无源晶振 5032 | AS5 | 5.0x3.2x0.9mm | 8-125MHZ | 20PF or specif | ±20PPM or specif | -40℃~+125℃ or specif | |
浏览 |
 |
AH3 车规级晶振3215 32.768KHz | AH3 | 3.2x1.5x0.75mm | 32.768KHz | 12.5PF or specif | ±20PPM or specif | -40℃~+125℃ or specif | |
浏览 |
 |
AO2 车规级有源晶振 OSC2520 | AO2 | 2.5x2.0x0.8mm | 1-170MHz | 1.8-3.3V or specif | ±20PPM or specif | -40℃~+125℃ or specif | |
浏览 |
 |
AO3 车规级有源晶振 OSC3225 | AO3 | 3.2x2.5x0.95mm | 1-170MHz | 1.8-3.3V or specif | ±20PPM or specif | -40℃~+125℃ or specif | |
浏览 |
 |
AO5 车规级有源晶振 OSC5032 | AO5 | 5.0x3.2x1.2mm | 1-170MHz | 1.8-3.3V or specif | ±20PPM or specif | -40℃~+125℃ or specif | |
浏览 |
