7050有源晶振参数：
|
ITEMS/TYPE |
O75 |
|
Frequency Range |
1~170MHz |
|
Output Type |
CMOS |
|
Output Load |
15pF, 30pF, or specify |
|
Oscillation Mode |
Fundamental / 3rd Overtone |
|
Supply Voltage |
1.8V~5.0V, or specify |
|
Frequency Stability |
± 20 ppm , or specify |
|
Operating Temperature Range |
-40~+85 ℃ , or specify |
|
Storage Temperature Range |
-55~+125 ℃ |
|
Voltage Vol ( Max. )/Voltage Voh ( Min. ) |
VOH=90%Vdd / VOL+10%Vdd |
|
Rise ( Tr ) / Fall ( Tf ) Time |
8ns Max. |
|
Current Consumption |
20mA Max. |
|
Symmetry |
45~55% |
|
Start-up Time |
5ms Max. |
|
Phase Jitter( 12KHz~20MHz ) |
1ps Max. |
|
Aging ( at 25℃) |
± 3 ppm / year Max. |

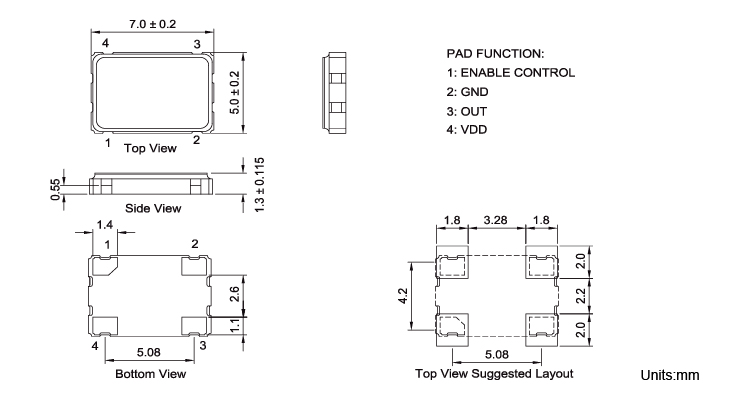

7050有源晶振尺寸：
| 图片 | 类型 | 型号 | 封装尺寸 | 频率 | 电压/负载 | 频差 | 工作温度 | 样品申请 | |
|---|---|---|---|---|---|---|---|---|---|
 |
O16有源晶振 OSC1612 | O16 | 1.6x1.2x0.6mm | 1-125MHz | 1.8-5.0V or specif | ±20PPM or specif | -40℃~+85℃ or specif |  |
浏览 |
 |
O21有源晶振 OSC2016 | O21 | 2.0x1.6x0.75mm | 1-125MHz | 1.8-5.0V or specif | ±20PPM or specif | -40℃~+85℃ or specif | |
浏览 |
 |
O22有源晶振 OSC2520 | O22 | 2.5x2.0x0.8mm | 1-170MHz | 1.8-5.0V or specif | ±20PPM or specif | -40℃~+85℃ or specif | |
浏览 |
 |
O32有源晶振 OSC3225 | O32 | 3.2x2.5x0.95mm | 1-200MHz | 1.8-5.0V or specif | ±20PPM or specif | -40℃~+85℃ or specif | |
浏览 |
 |
O53有源晶振 OSC5032 | O53 | 5.0x3.2x1.2mm | 1-170MHz | 1.8-5.0V or specif | ±20PPM or specif | -40℃~+85℃ or specif | |
浏览 |
